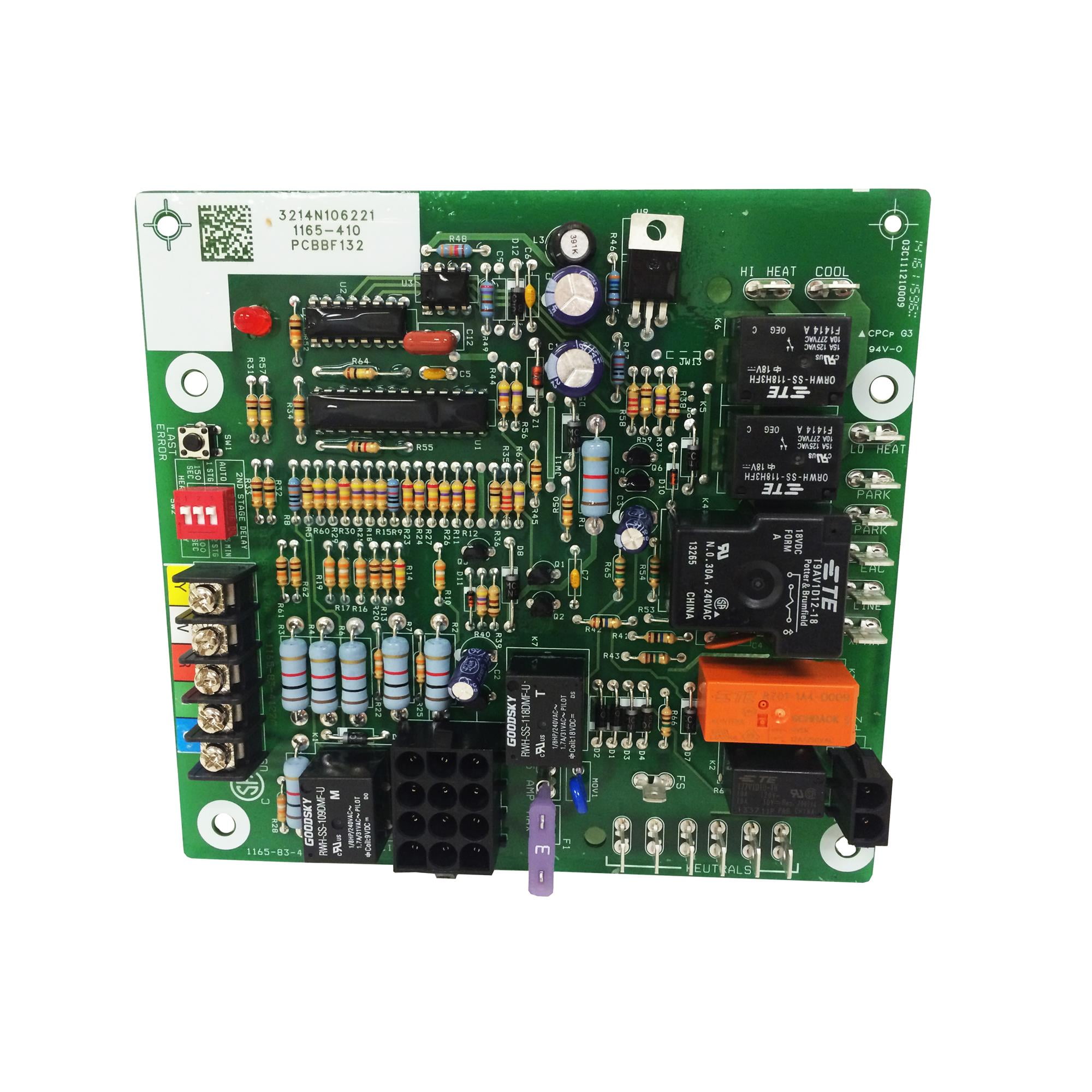

Furnace Eac Terminals. PCBBF132S Goodman PCB 2 Stage Hybrid Furnace Control I would wire the Yellow (Comm) to the 120v Hot/Line from the electric panel or furnace junction box From all the posts I've read, I'm supposed to tie the transformer into the EAC or HUM terminal
Rewire ABCD to standard terminals (R, G, Y, W, C) at the furnace from www.justanswer.com

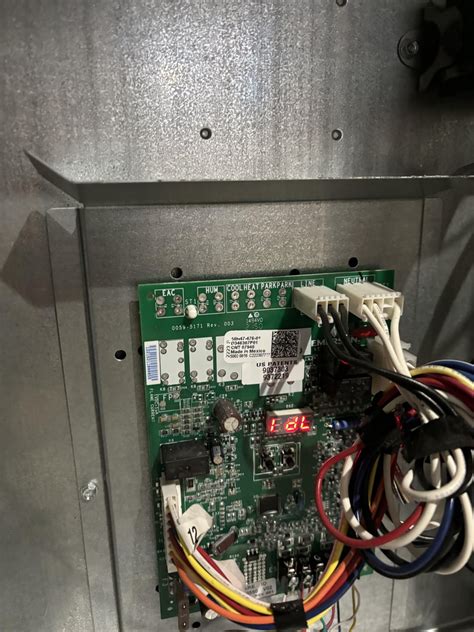

Humidifiers and Dehumidifiers - Wire Aprilaire 700M to my furnace Trane XV80 - Hello everyone, In the middle of installation of Aprilaire 700M, I ran into this issue: how to wire 24V transformer to furnace board I've opened the furnace, and nothing is labeled EAC or appears to be intended to have anything else hooked up to it beyond what is already there
Rewire ABCD to standard terminals (R, G, Y, W, C) at the furnace
Humidifiers and Dehumidifiers - Wire Aprilaire 700M to my furnace Trane XV80 - Hello everyone, In the middle of installation of Aprilaire 700M, I ran into this issue: how to wire 24V transformer to furnace board EAC terminal are energized as soon as the fan starts blowing in both ac and heat. From all the posts I've read, I'm supposed to tie the transformer into the EAC or HUM terminal
Rewire ABCD to standard terminals (R, G, Y, W, C) at the furnace. The HUM terminal on most furnaces is a 120VAC terminal I would connect the EAC-H terminal from the furnace board to the Wht/Blk wire on the relay; I would connect the EAC-N terminal from the furnace board to the Wht/Yel wire on the relay; Outputs: 3 prong outlet, assuming normally open condition
Where to Connect C Wire On Furnace Guide. I would wire the Yellow (Comm) to the 120v Hot/Line from the electric panel or furnace junction box I'm installing an Aprilaire 700 automatic humidifier on to a Goodman furnace
